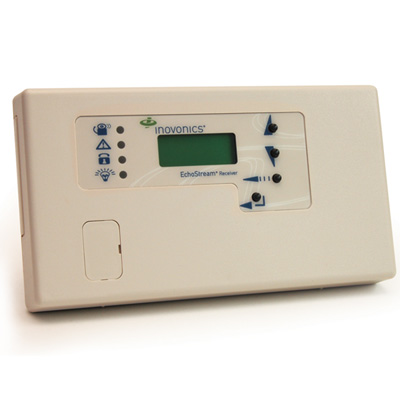

16 Zone Multi-Condition Receiver with Relay Outputs

  • EN4216MR
  • The Inovonics 16 zone¬†multi-condition receiver with relay outputs programs and supervises up to 16 single or multiple condition transmitters. This receiver includes Form C relays for each output, allowing connection to any hardwire panel, or stand-alone wireless application.

Key Features

  • Add up to 16 high performance EchoStream wireless transmitters to any installation
  • Includes support for both single and multiple condition transmitters
  • Two line text display shows condition of each transmitter, provides log of past events, and displays signal strength
  • Six form C relays for connecting to any panel
  • Outputs can be configured in follower, latching, momentary, or toggle modes independently
  • Case tamper protection, jam detection, and internal antennas for a secure wireless implementation
  • Wireless programming routine built into the receiver

Network Specifications

  • 902 - 928 MHz North America
  • 915 - 928 MHz Australia
  • 921 - 928 MHz New Zealand
Platform EchoStream
